T238 1.9 Mosfet Moudel Digital Trigger Unit Programmable Active Braking Binary Overheat Protect for AIRSOFT Gel Ball Gearbox V2

T238 1.9 Mosfet Moudel Digital Trigger Unit Programmable Active Braking Binary Overheat Protect for AIRSOFT Gel Ball Gearbox V2

Features:

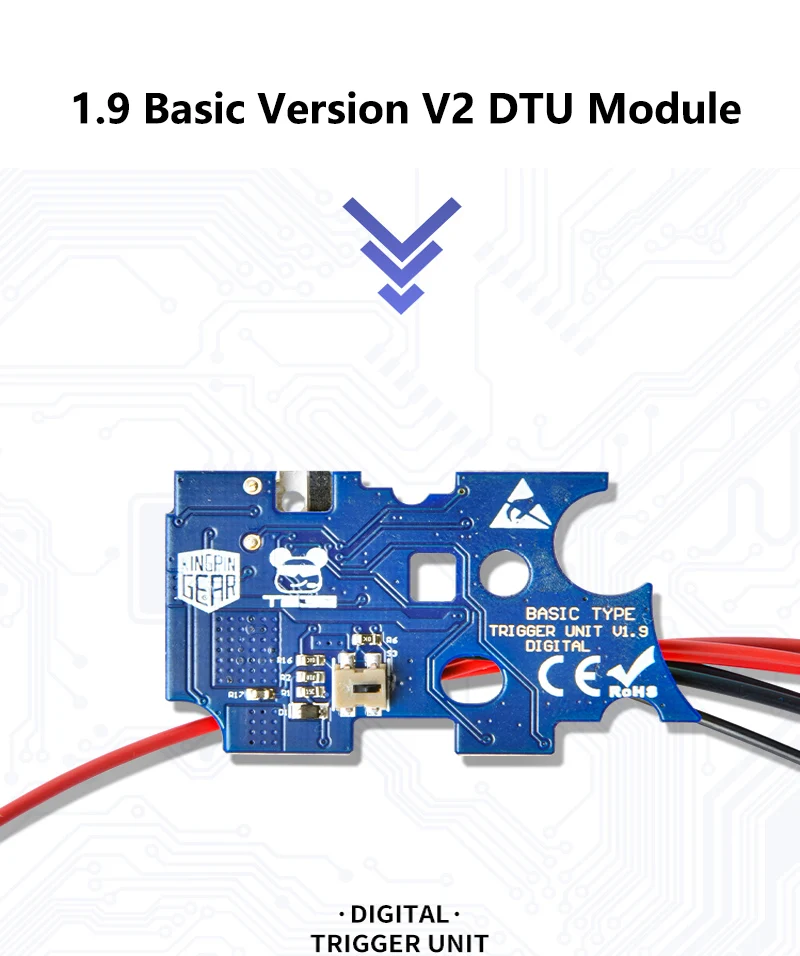

T238 Digital Trigger Unit Basic Type Version 1.9 Programmable MOSFET For AIRSOFT and Gel Ball Blaste V2 Gearbox.

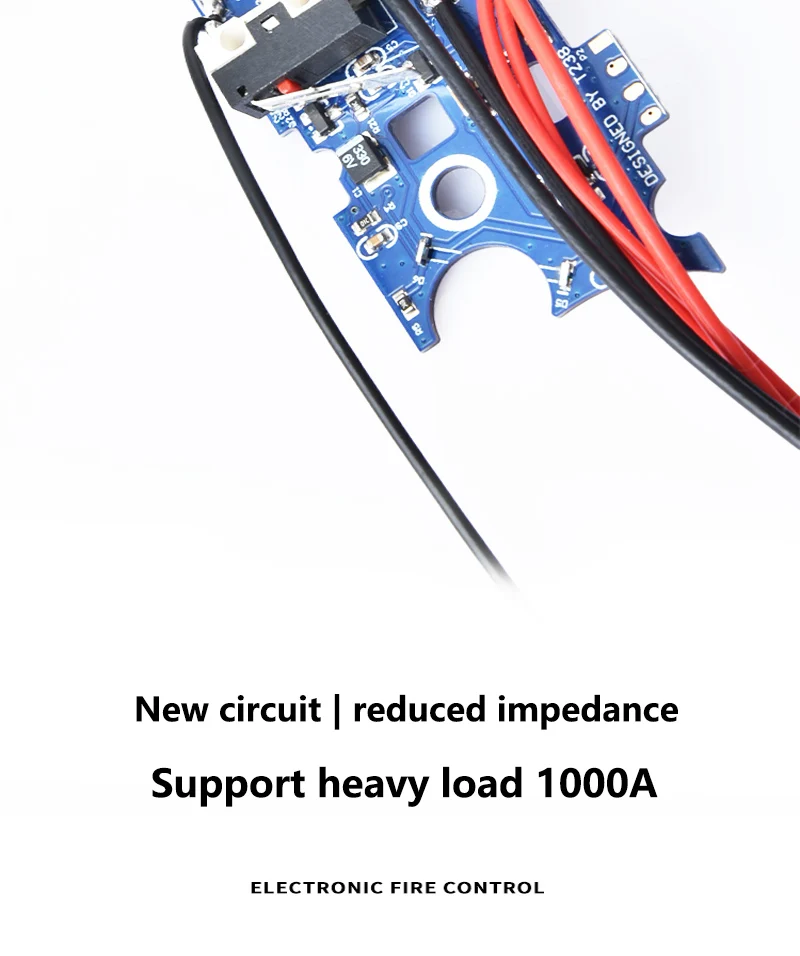

Adopts a high-speed processor and 2 high-power MOSFET chips,With binary trigger, automatic loading of gel ball magazine, overheating protection and other functions.With gearbox stall protection.It can effectively improve the stability, shooting speed and response speed of the gearbox.

Specification:

Size: 49*28*15mm

Operating voltage: 7.4-11.1V

Maximum Inrush current is 300A, Maximum Brake current is 100A

Compatible with various Standard Gearbox V2

Functions:

Support up to 11.1V batteries

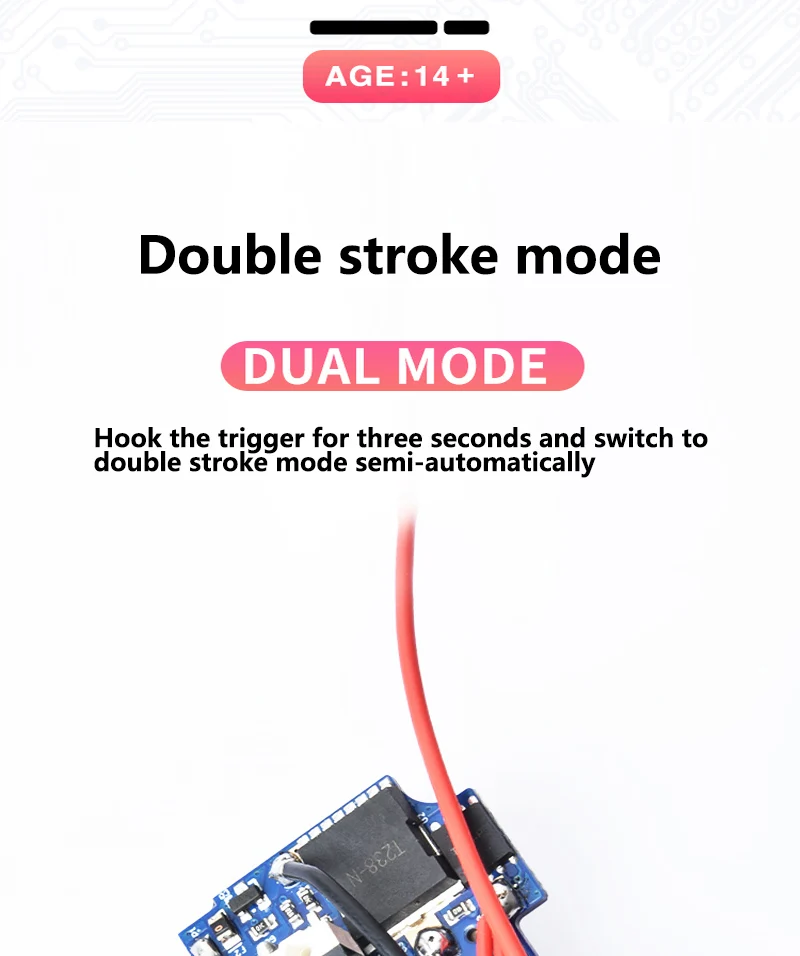

Binary trigger. Put the selector in semi-auto position, pull and hold the trigger for 3 seconds will change the semi-auto function into binary trigger shooting mode.

Block-up protection.When gearboxBlock-up occurs, the system stops working and emits an elongated 'beep' sound. Please check the wave box immediately by power off.

Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 0.5 second.

Increase rate of fire.This module is able to increase rate of fire, the stability of single-shot and make batteries have higher durability.

Active braking.The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor

Prevent gears from over-rotating.The active function prevents the over-spin of gears, this solve the issue that the single shot becomes multiple shot under high voltage. Meanwhile, the spring is fully released in semi-auto mode and parts in gearbox are not under strain, increase the life cycle of gearbox and parts.

DTU overheat protection.When the DTU is overheated,after the trigger is pulled,the motor will give a beep prompt until it is automatically restarted after cooling.

Manual link: https://cdn.shopifycdn.net/s/files/1/0567/6505/5036/files/T238_digital_Trigger_Unit_V2-1.9.pdf?v=1651046590

Package Included:

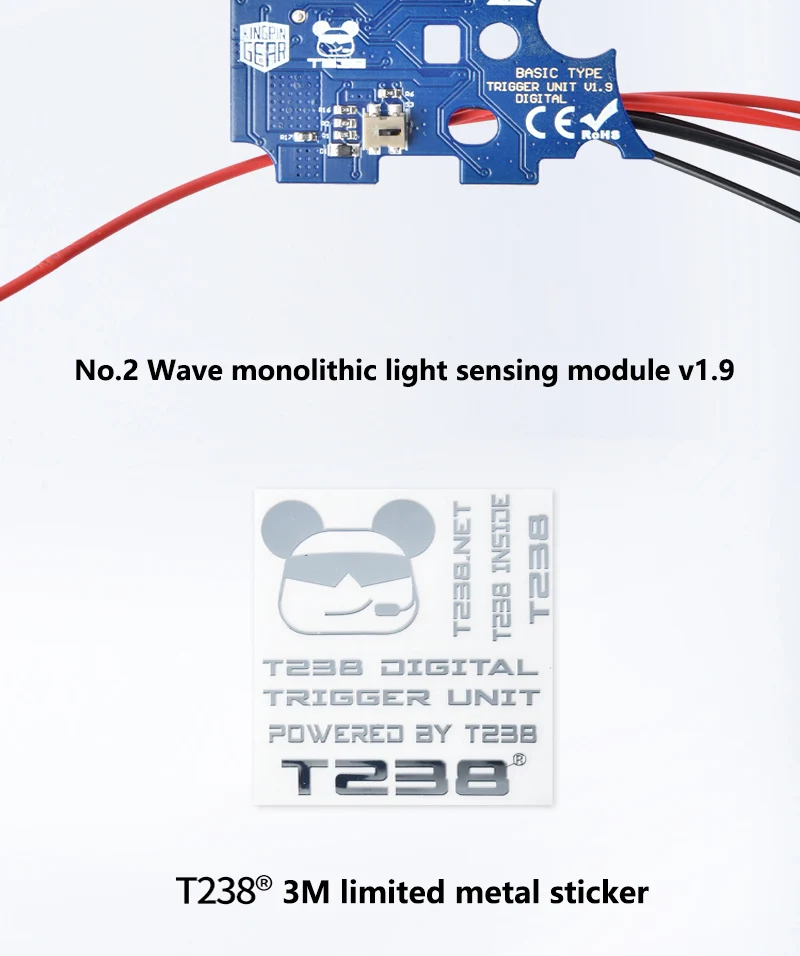

1 X Digital trigger unit V1.9 V2

1 XT238 Metal Sticker

1 X Warranty(When you receive the goods, if you have any questions, please contact our customer service staff first）

Note:

This product requires soldering and wiring. It is recommended that installation is undertaken by an experienced technician.
