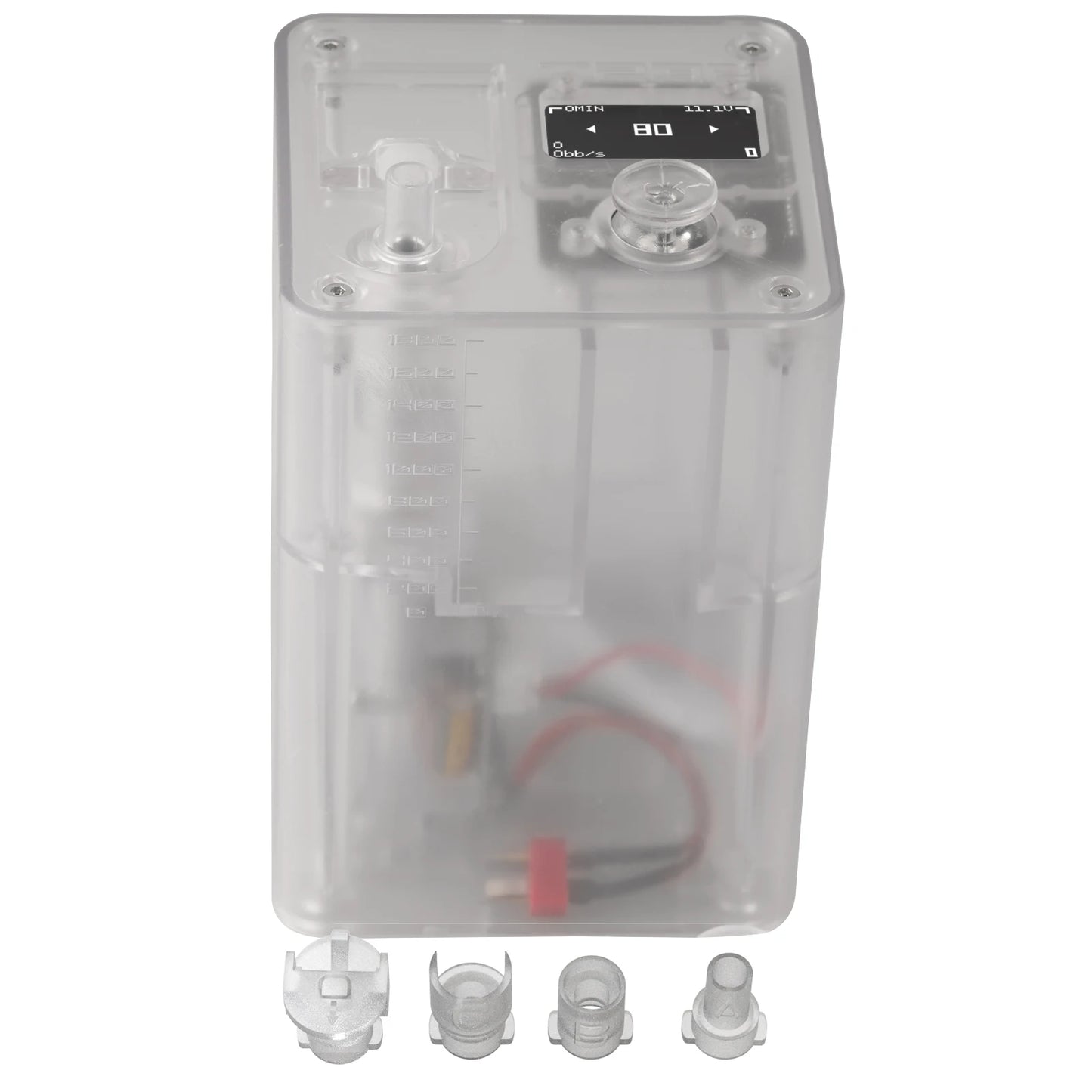

T238 Electric Speed Loader PRO Edition

Description

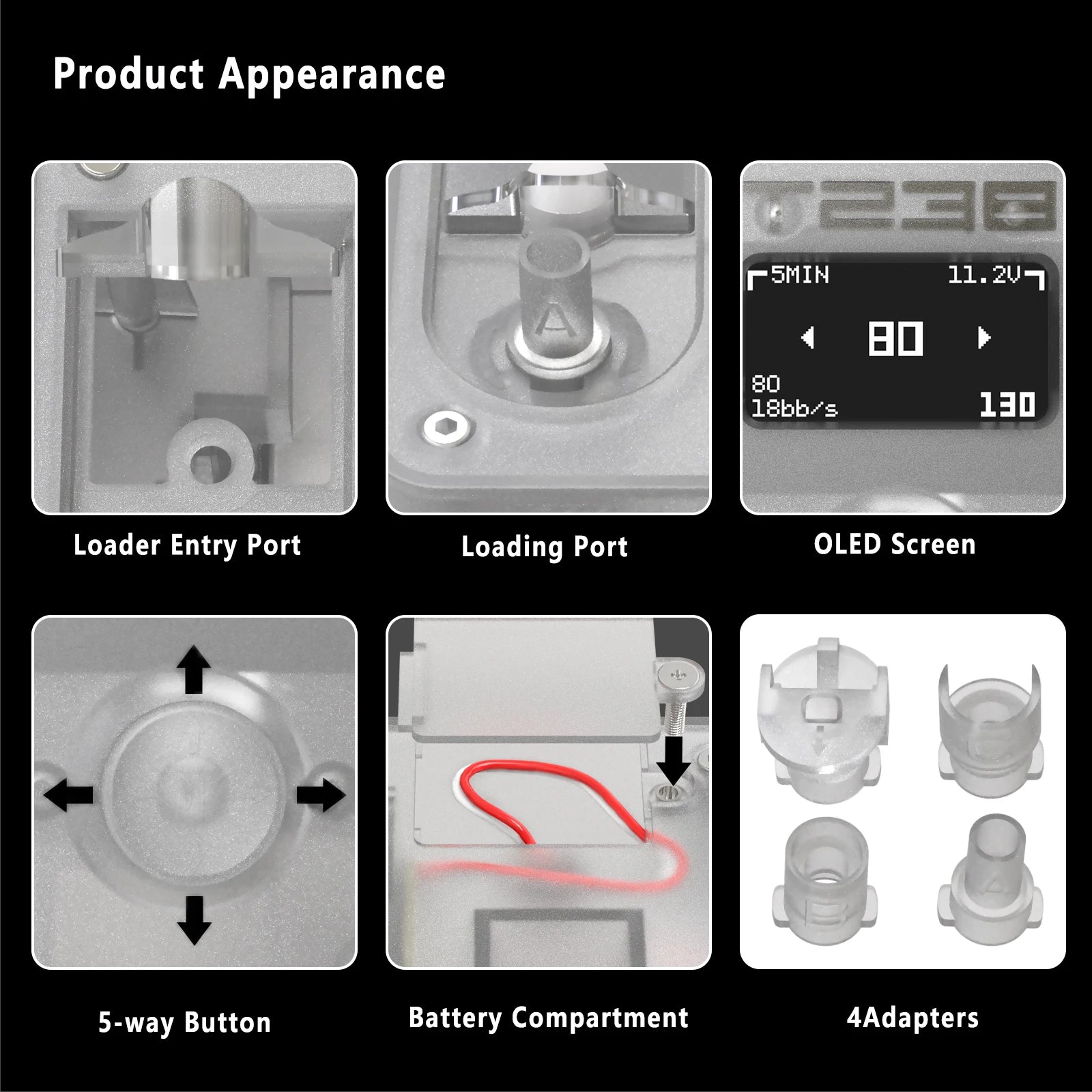

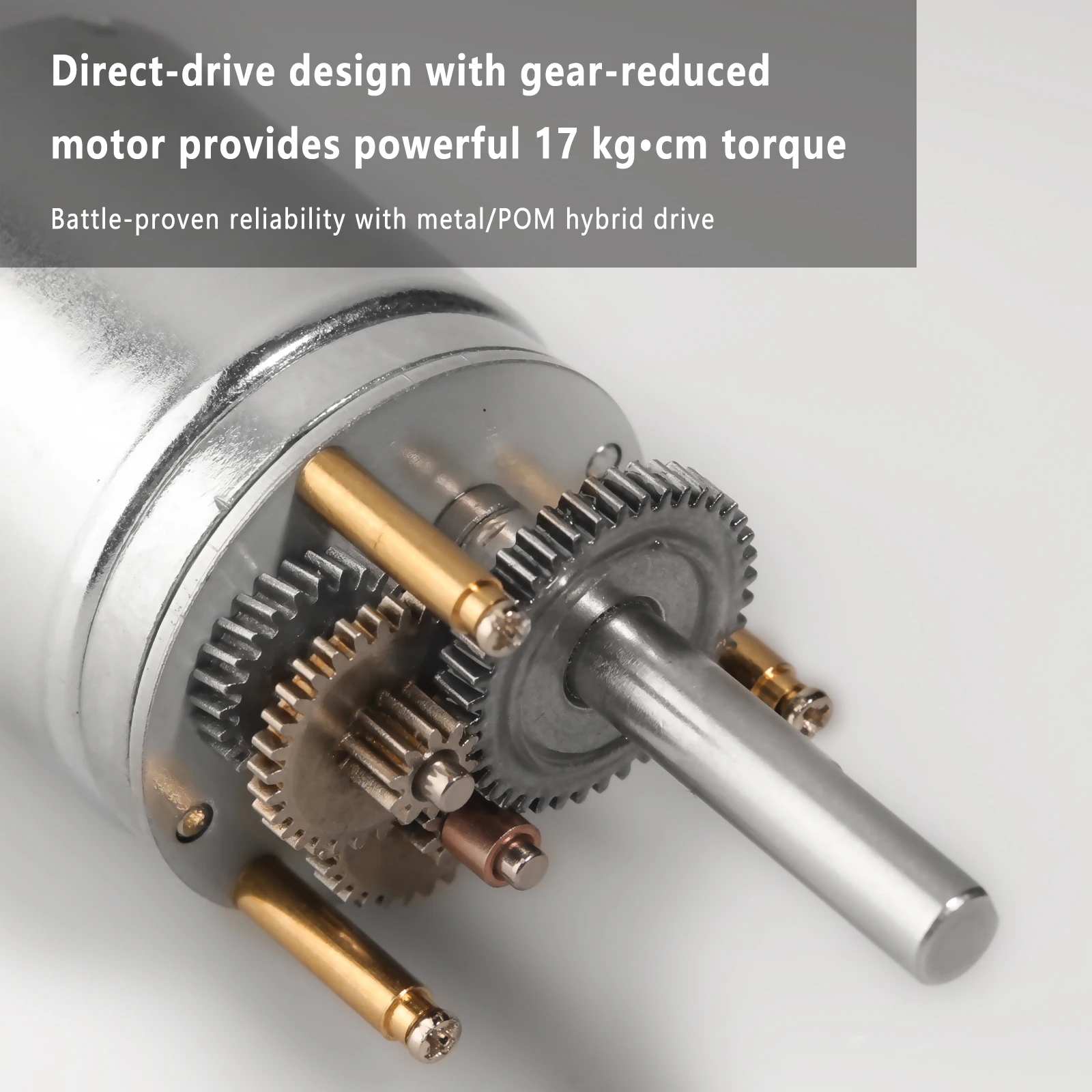

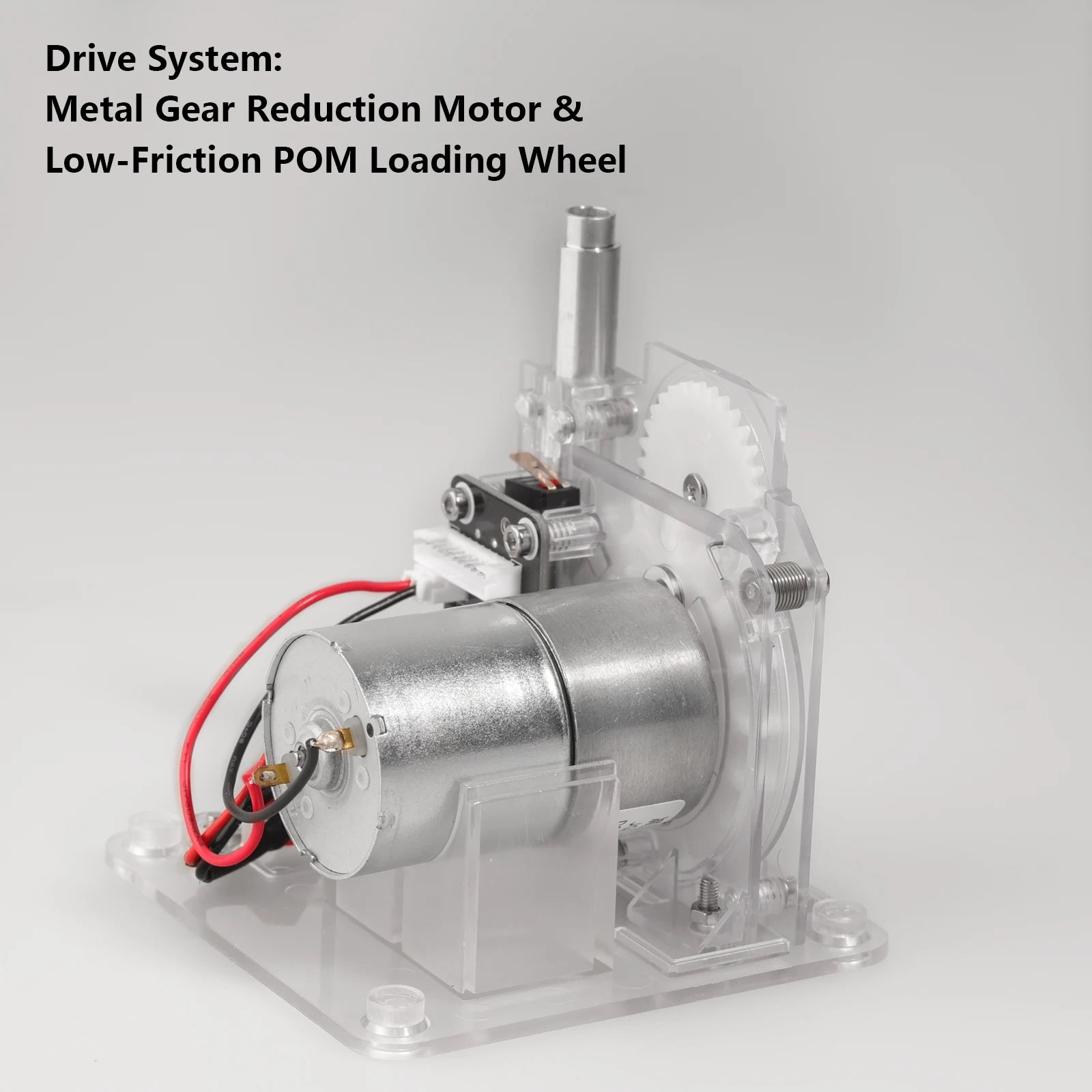

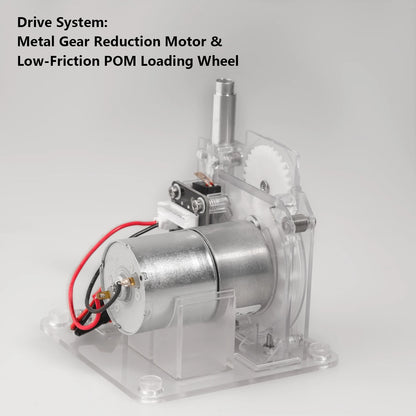

The T238 Electric BB Speed Loader PRO Edition is an smart loading system designed for Airsoft magazines. Powered by a 3S LiPo battery and high-torque motor, it enables rapid reloading for GBB, AEG, and other standard magazines. It features fixed-count loading mode and dynamic loading mode, with a 5-way button and OLED screen for customizable settings and real-time data display. Built-in jam clearing, anti-stall protection, and low-voltage cutoff ensure stable and efficient operation.

Features

Supports 2S/3S LiPo batteries with automatic cell count detection

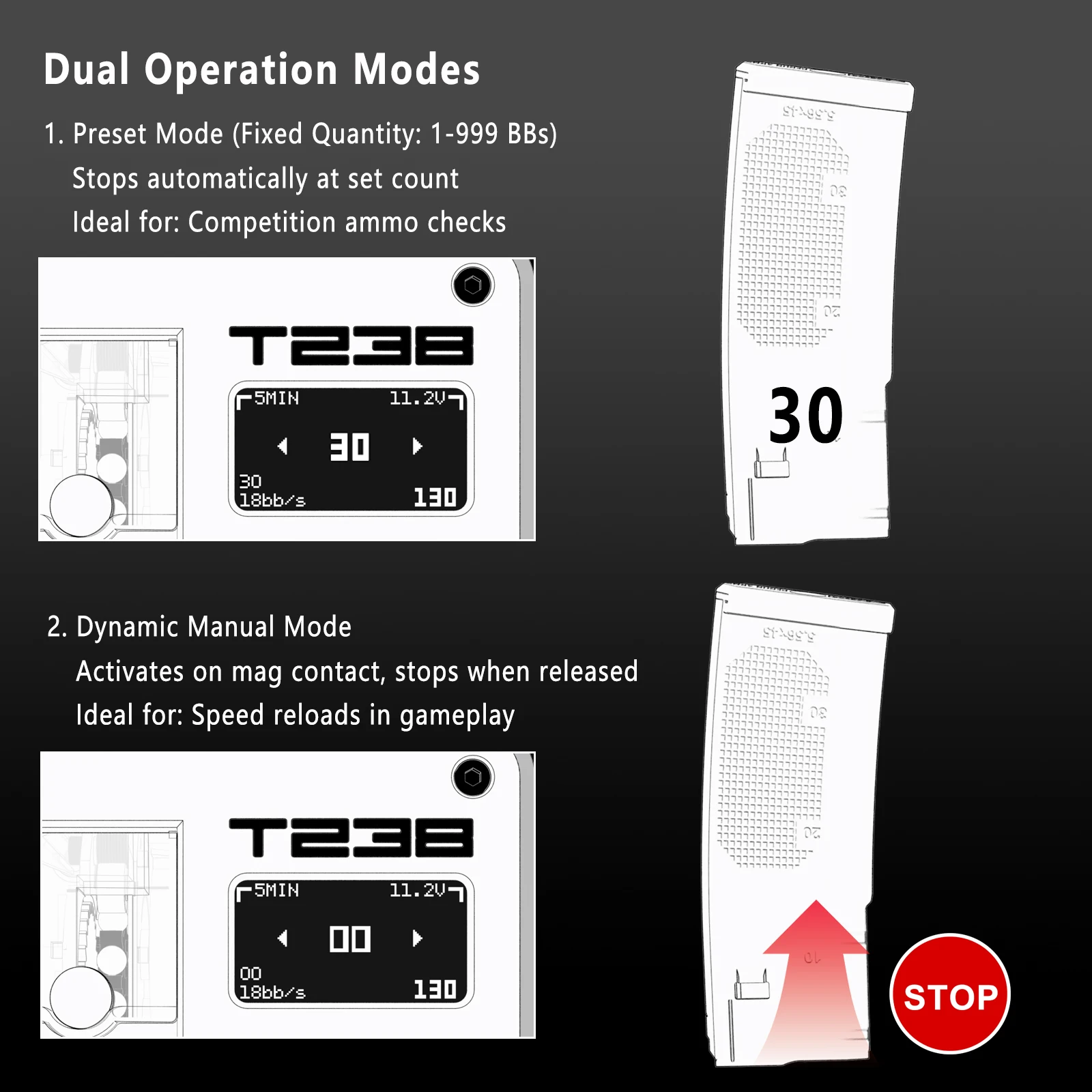

Support Manual Loading Mode and Fixed Quantity Mode

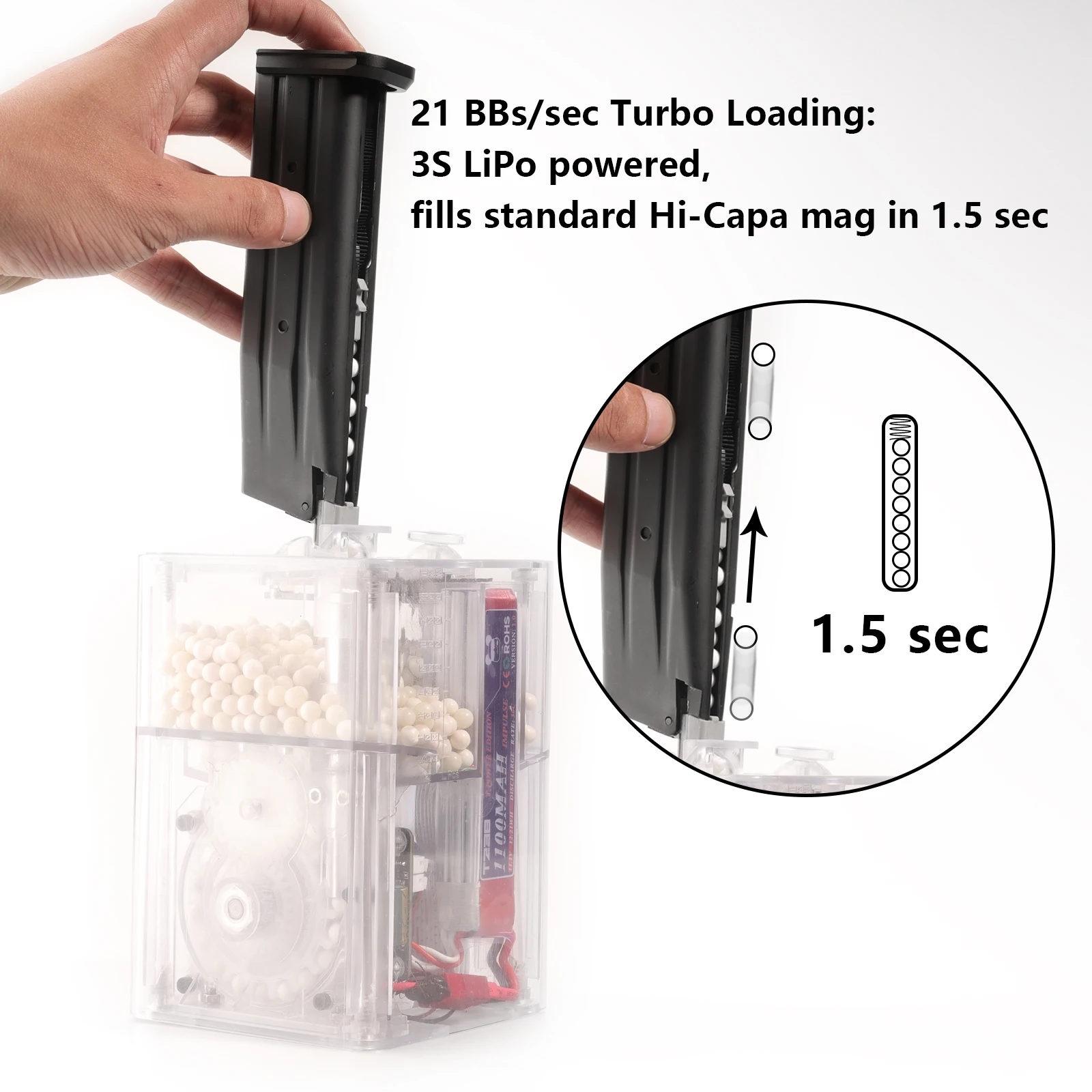

Max loading speed: 21 BBs/sec (@12.6V)

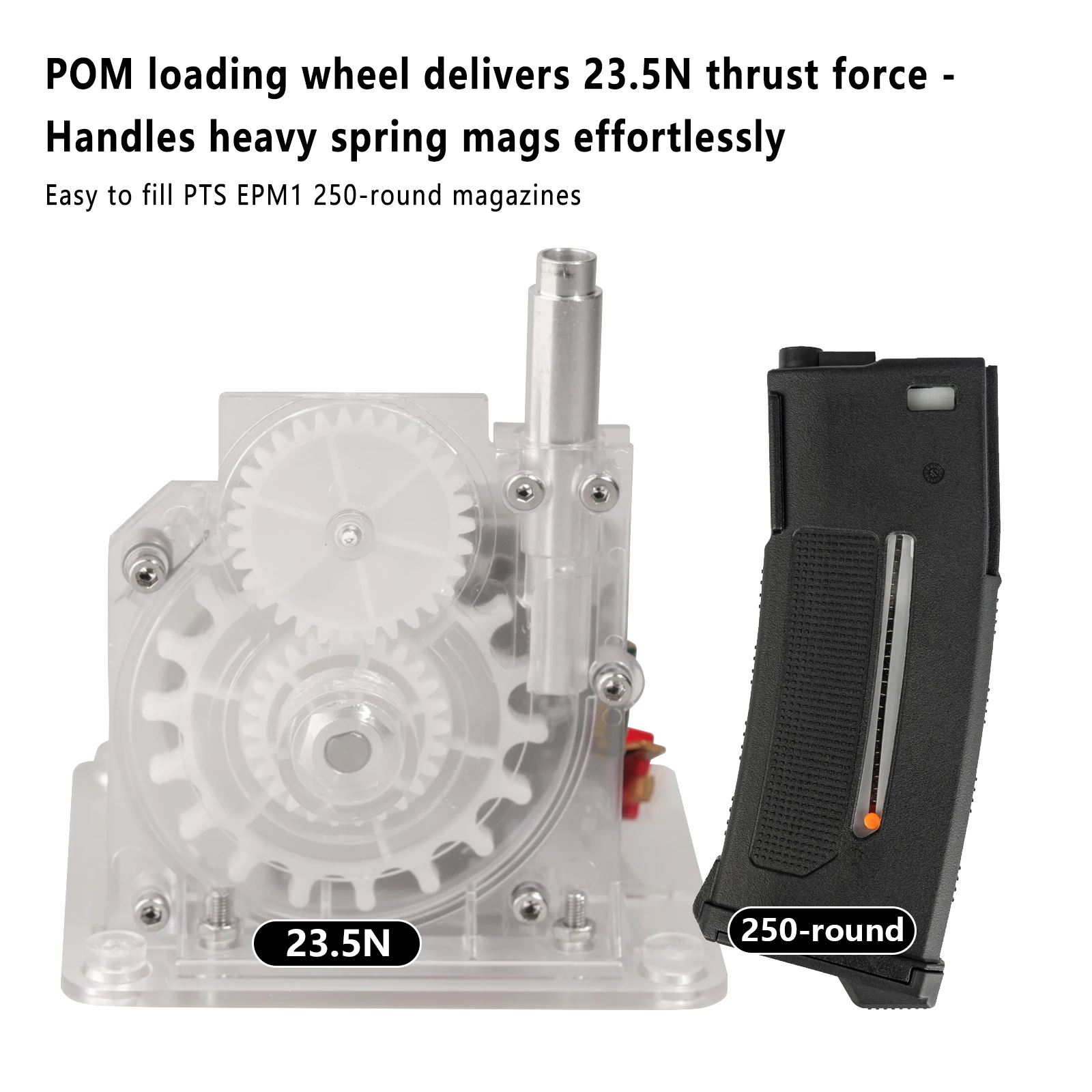

Max thrust: 23.5N – Easily loads PTS EPM1 250-rd magazines

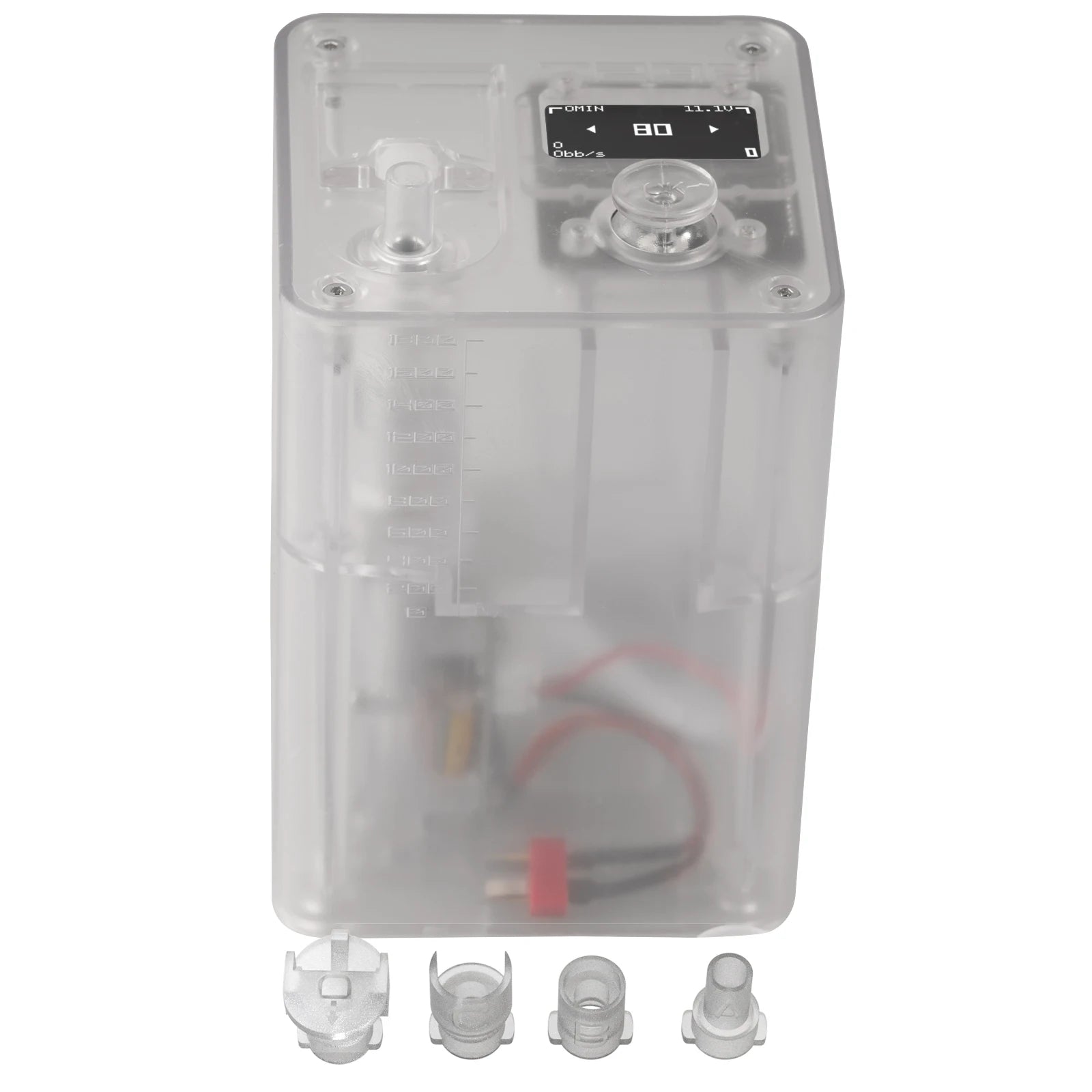

Includes 4 nozzle adapters for GBB/AEG/Spring bolt action replica magazines
Empty Loader alert: Buzzer + OLED warning when speed loader is running out of BBs
Real-time stats display: Voltage/BB count/loading speed

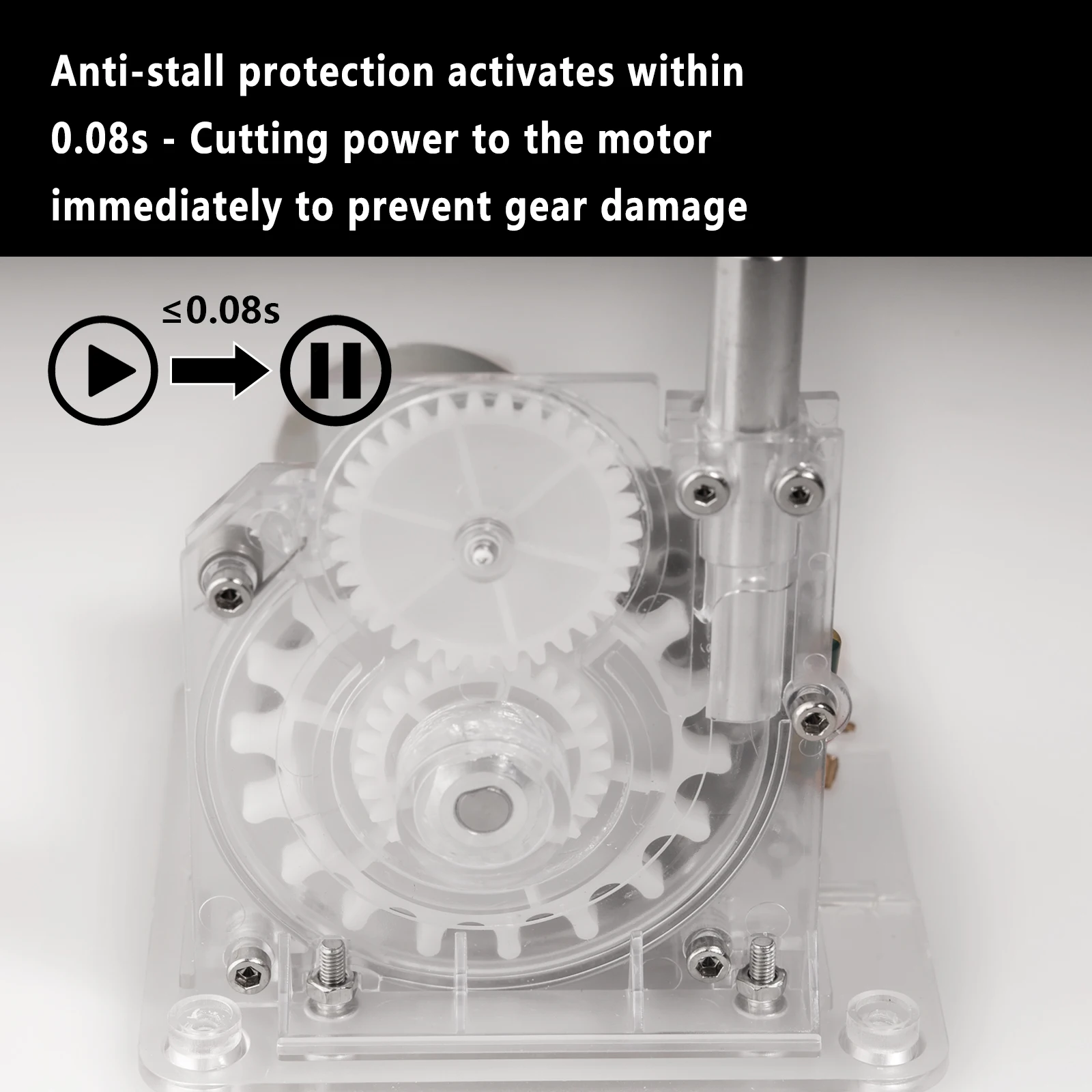

Anti-stall protection: Prevents gear damage during stall

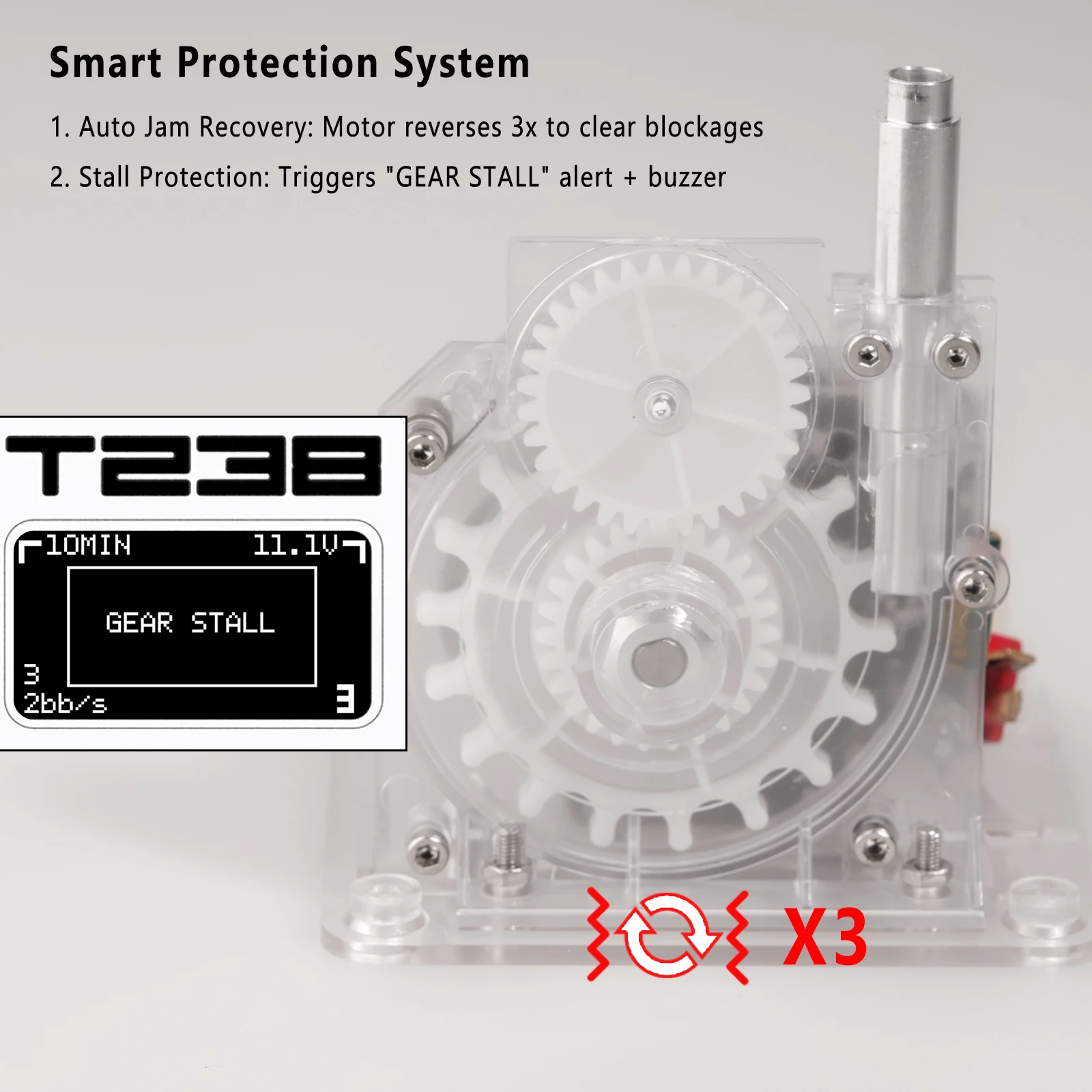

Jam clearing function: Vibrates gears to resolve jams

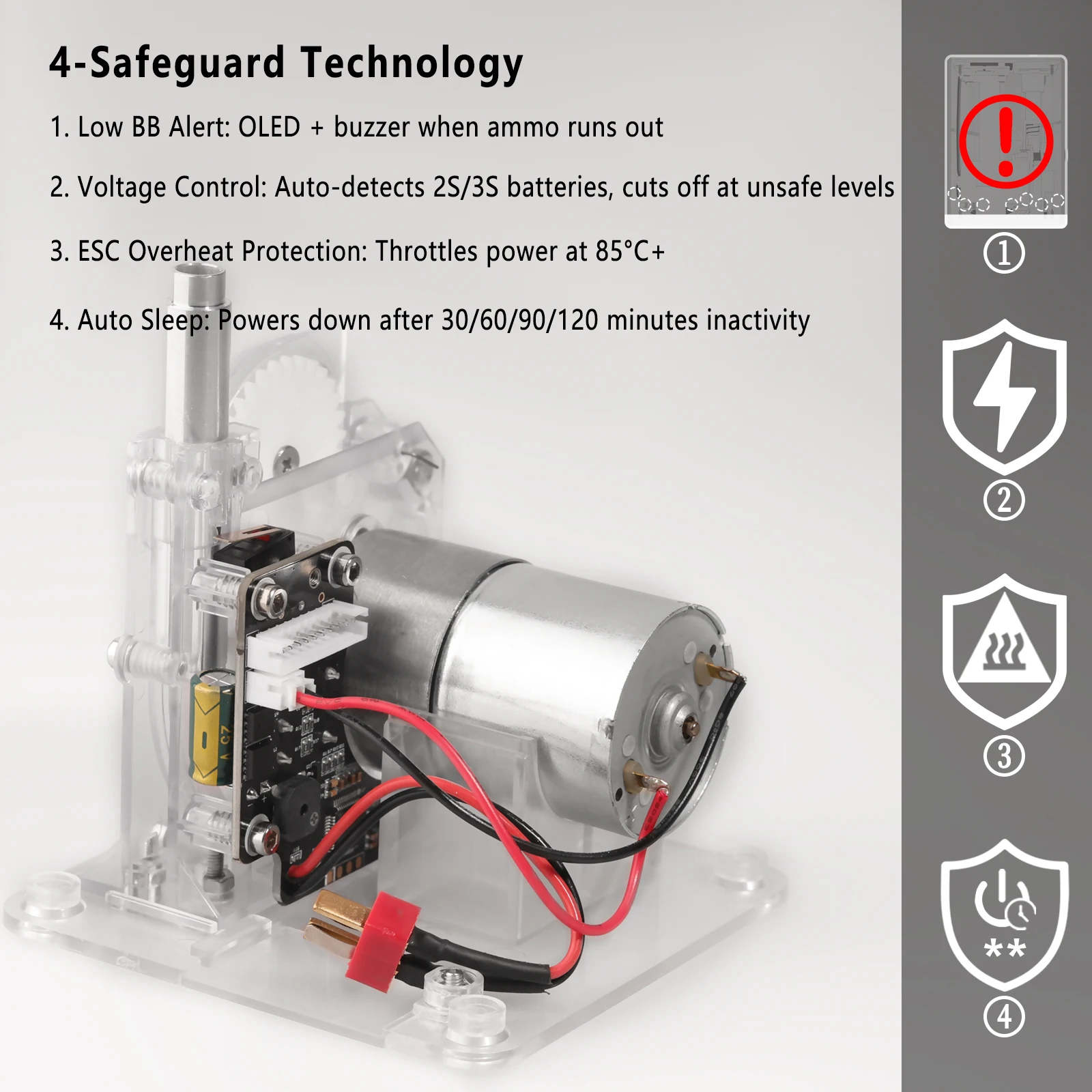

Smart safeguards: Low/high voltage cutoff/Overheat protection/Auto-shutdown after prolonged inactivity

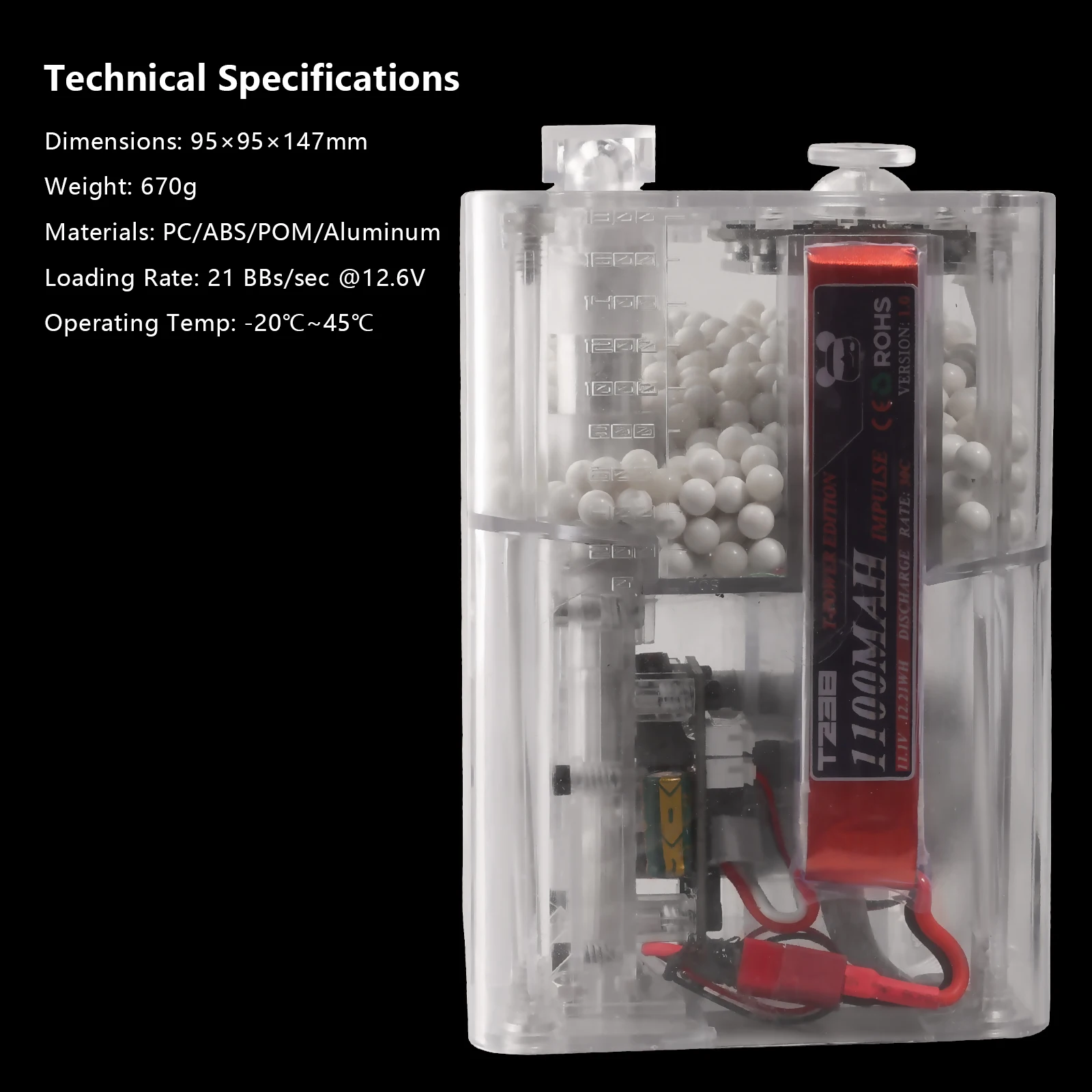

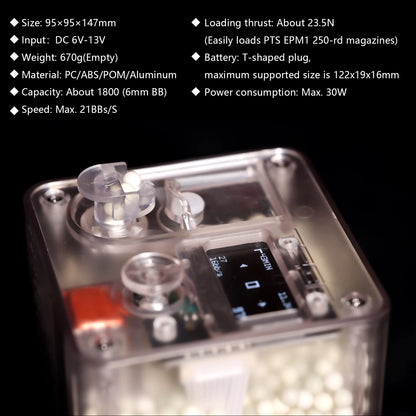

Specifications

1.Basic Information

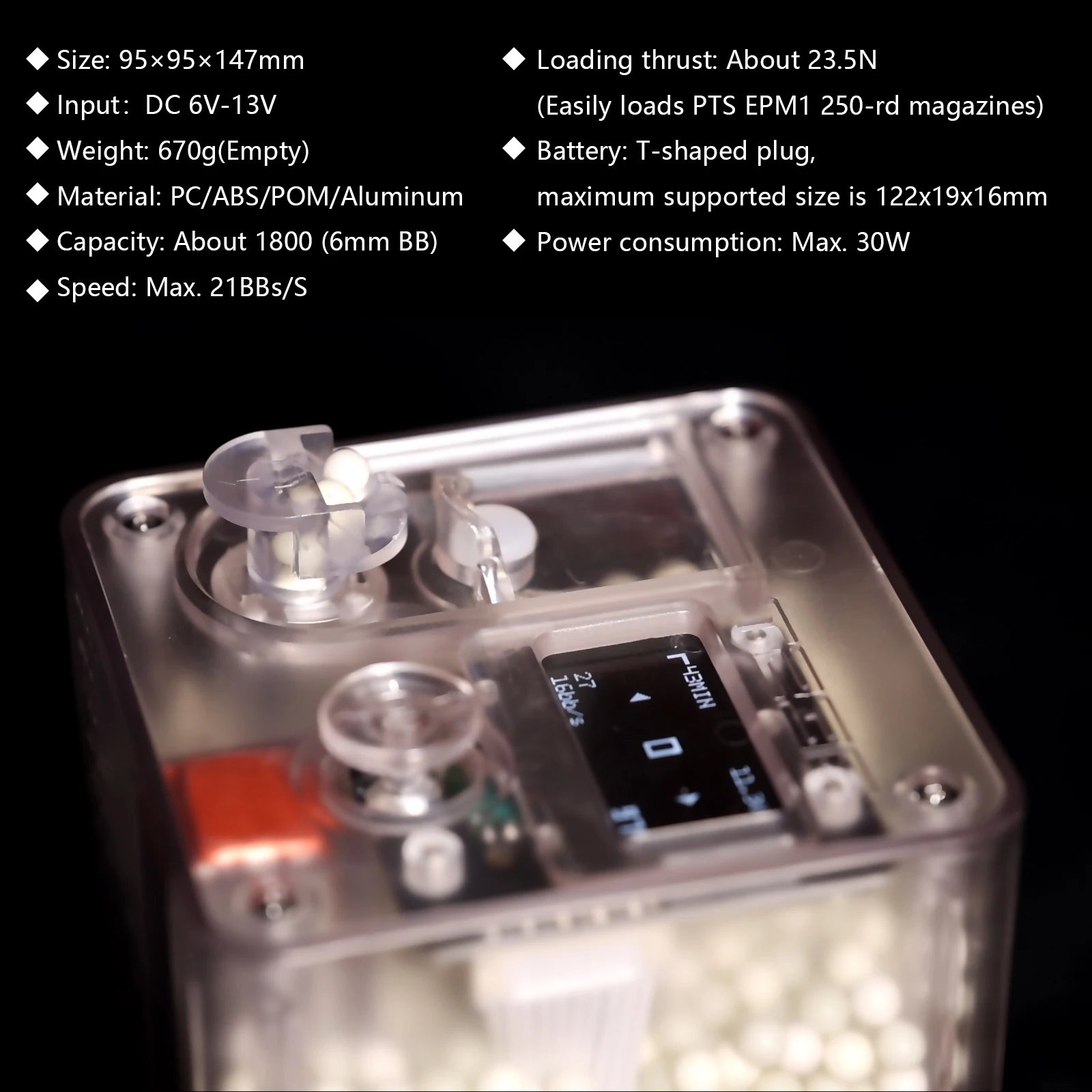

Size: 95×95×147mm
Weight: 670g(Empty)
Material: PC(Some are aluminum alloy parts)

2.Performance

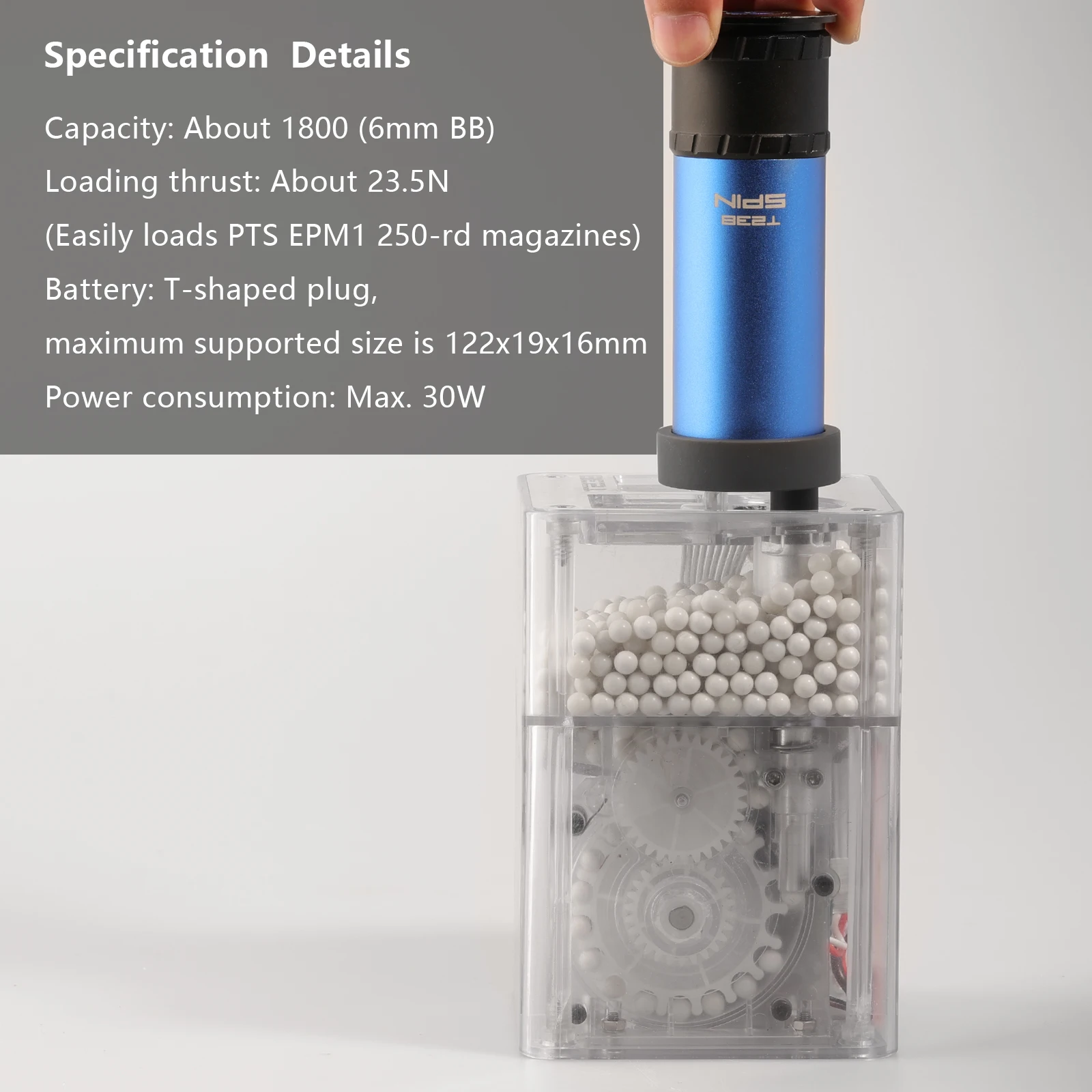

Capacity: About 1800 (6mm BB)
Speed: 17-21BBs/S(@3S battery), 13-16BBs/S(@2S battery)
Loading thrust: About 23.5N

3.Electrical Specifications

Input：DC 6V-13V
Power consumption:
Standby state after startup: 0.3W @2S battery/0.46W @3S battery
No-load working state: 2.2W~3.7W(@2S battery)/3.3W~5.6W@3S battery
Maximum power: 30W

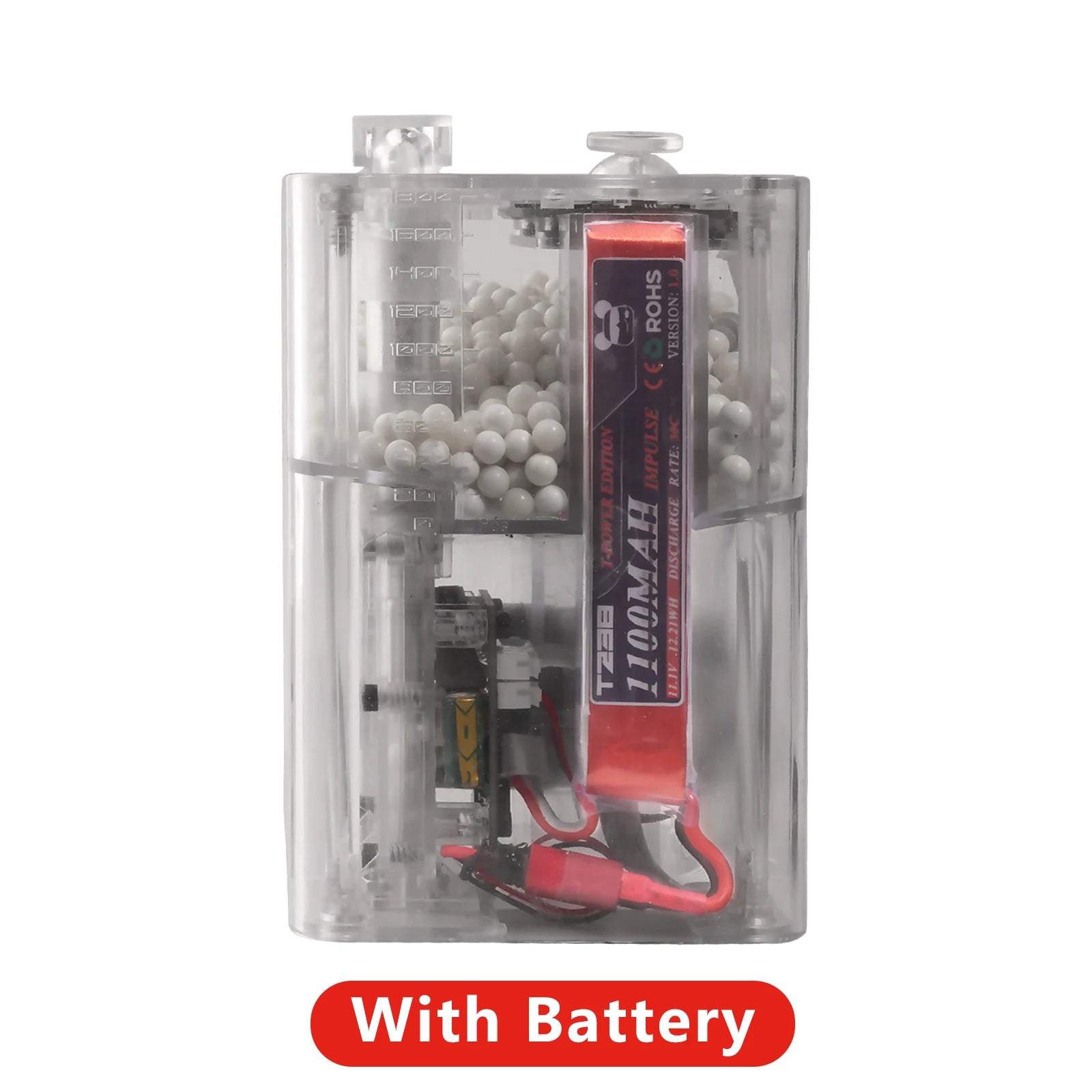

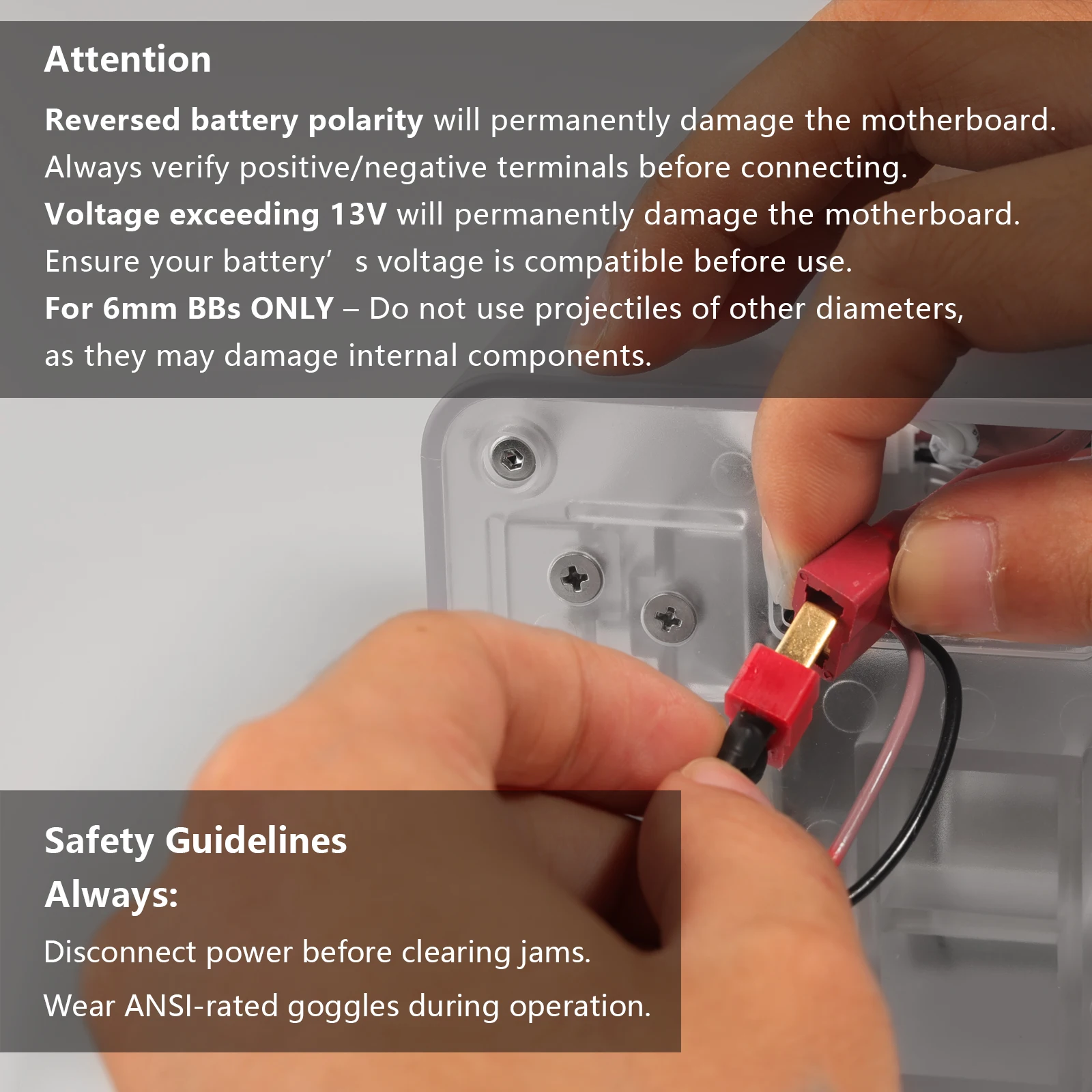

Battery: T-shaped plug, maximum supported size is 122x19x16mm

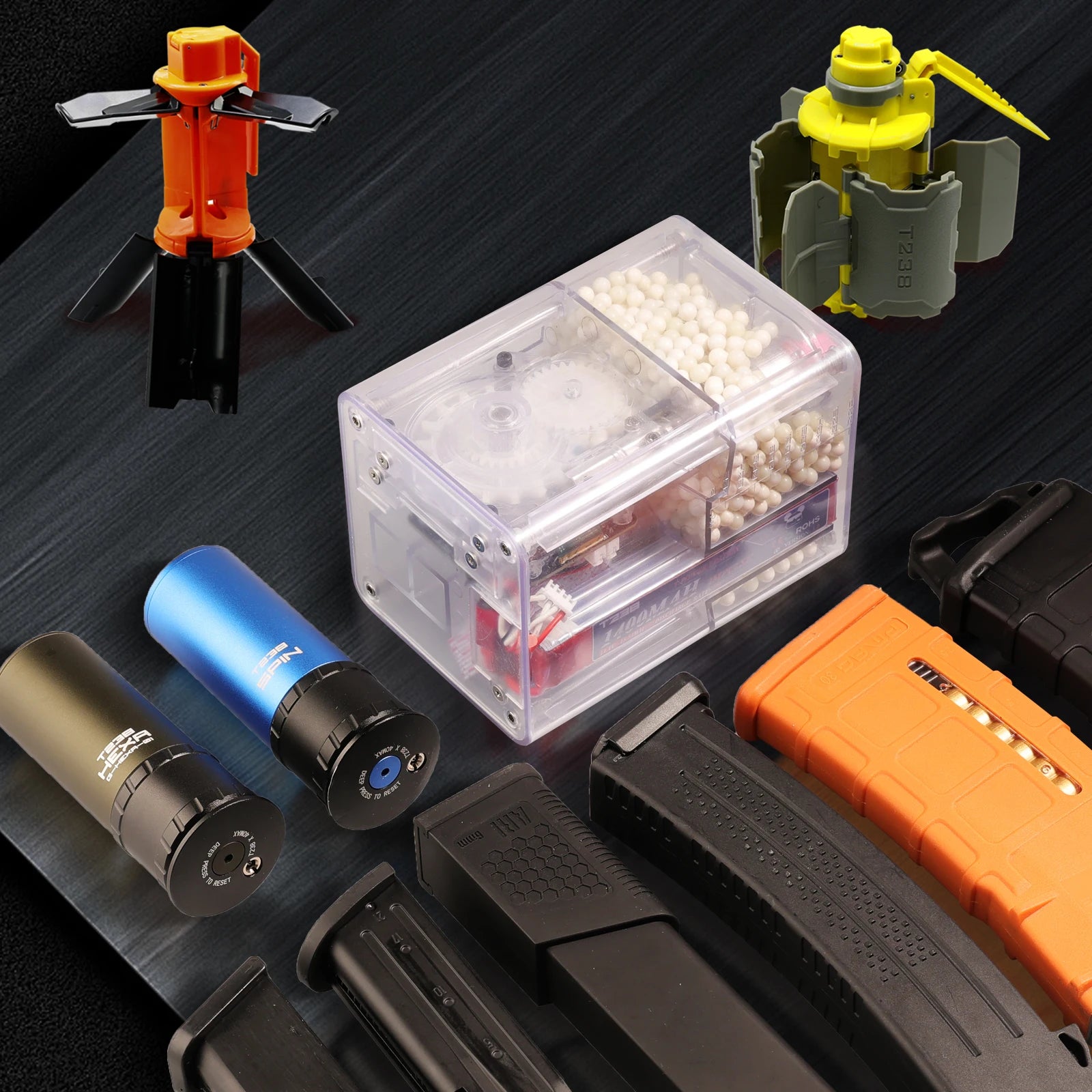

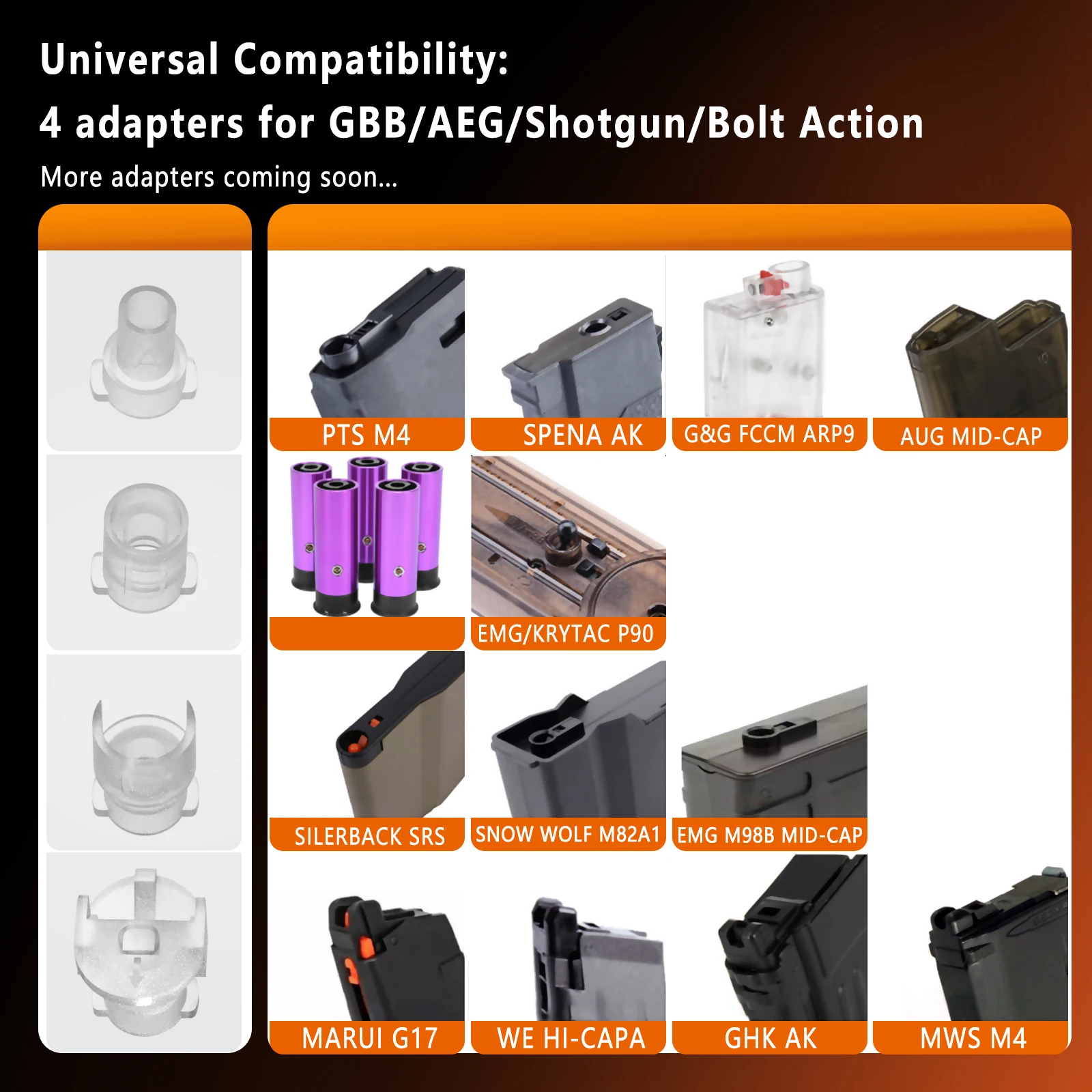

4.Compatible magazines: Various normal magazines (spring type magazines)

Adapter A: Suitable for most AEG magazines such as AK, AR, etc
Adapter B: Suitable for gas shotgun shell
Adapter C: Suitable for most bolt action spring replica magazines
Adapter D: Suitable for most GBB magazines such as WE/GHK/MWS/MARUI
